MURATA村田LQH3NPN100MGRL电感 电感值 10μH 直流电阻 0.28Ω 贴片功率电感
公司基本资料信息
推荐产品
- 电感值：10μH
- 直流电阻：0.28Ω
- 额定电流：0.57A
- 通过的认证：BIS认证
- 自谐频率：20MHz
- 测试频率：1Mk
＜品名（附包装代号）一览＞
LQH3NPN100MGRL
Size Code 3030 (1212) in mm (in inch), 1.0mm max. Thickness. Low DC Resistance Type

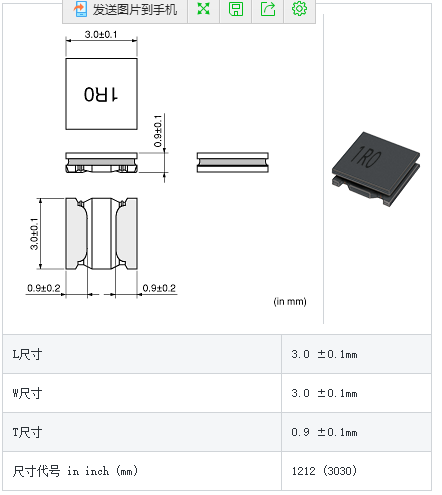

形状
|
|||
|---|---|---|---|
| L尺寸 | 3.0 ±0.1mm | ||
| W尺寸 | 3.0 ±0.1mm | ||
| T尺寸 | 0.9 ±0.1mm | ||
| 尺寸代号 in inch (mm) | 1212 (3030) | ||
规格
| 电感徝 | 10µH ±20% |
| 电感徝测试频率 | 1MHz |
| 额定电流(Isat) *根据电感徝変化 | 570mA |
| 额定电流(Itemp) *根据温度上升 | 1120mA(Ambient temp.85℃) 670mA(Ambient temp.105℃) |
| 直流电阻(最大) | 0.336Ω |
| 直流电阻中心值 | 0.28Ω±20% |
| 自己共振周波数 (以上) | 20MHz |
| 使用温度范围 (包含自身温度的提高) | -40～125℃ |
| 使用温度范围 (不包含自身温度的提高) | -40～105℃ |
| 电磁屏蔽等級 | Magnetic Resin |
备注事项
When applied Rated current to the Products, Inductance will be within ±30% of initial inductance value range.
Keep the temperature(ambient temperature plus self-generation of heat) under 125℃.
When applied rated current to the products, temperature rise caused by self-generated heat shall be limited to 40℃ (at the rated current under 85℃) 20℃ (at the rated current under 105℃).
参考信息
| 包装代号 | 规格 | 最小订购单位 |
|---|---|---|
| L | φ180mm压纹带 | 3000 |
| 质量(参考值) | |
|---|---|
| 1个 | 0.034g |
| 品名 #处为包装代号。 |
| LQH3NPN100MGR# |
| LQH3NPN100MJR# |
| LQH3NPN100MME# |
| LQH3NPN100MMR# |
| LQH3NPN101MGR# |
| LQH3NPN101MME# |
| LQH3NPN150MGR# |
| LQH3NPN150MJR# |
| LQH3NPN150MME# |
| LQH3NPN151MGR# |
| LQH3NPN181MGR# |
| LQH3NPN1R0MGR# |
| LQH3NPN1R0MJR# |
| LQH3NPN1R0MME# |
| LQH3NPN1R0MMR# |
| LQH3NPN1R5MGR# |
| LQH3NPN1R5MJR# |
| LQH3NPN220MGR# |
| LQH3NPN220MJR# |
| LQH3NPN220MME# |
| LQH3NPN220MMR# |
| LQH3NPN221MGR# |
| LQH3NPN251MGR# |
| LQH3NPN2R2MGR# |
| LQH3NPN2R2MJR# |
| LQH3NPN2R2MME# |
| LQH3NPN2R2MMR# |
| LQH3NPN330MGR# |
| LQH3NPN330MJR# |
| LQH3NPN330MME# |
| LQH3NPN330MMR# |
| LQH3NPN3R3MGR# |
| LQH3NPN3R3MJR# |
| LQH3NPN3R3MME# |
| LQH3NPN3R3MMR# |
| LQH3NPN470MGR# |
| LQH3NPN470MJR# |
| LQH3NPN470MME# |
| LQH3NPN470MMR# |
| LQH3NPN4R7MGR# |
| LQH3NPN4R7MJR# |
| LQH3NPN4R7MME# |
| LQH3NPN4R7MMR# |
| LQH3NPN680MGR# |
| LQH3NPN6R8MGR# |
| LQH3NPN6R8MJR# |
| LQH3NPN6R8MME# |
| LQH3NPN6R8MMR# |
| LQH3NPNR47NGR# |
| LQH3NPNR68NJR# |
| LQH3NPN560MME# |
| LQH3NPN680MME# |
哔哥哔特电子元器件产品库会员奥纳有限公司为您提供MURATA村田LQH3NPN100MGRL电感 电感值 10μH 直流电阻 0.28Ω详细产品信息介绍，如MURATA村田LQH3NPN100MGRL电感 电感值 10μH 直流电阻 0.28Ω详细参数、批发价格、图片、质量认证等方面。在联系该企业时,请说明是在哔哥哔特电子元器件产品库看到的。
