MURATA村田LQH44PN1R0NP0L电感 电感值 1μH 直流电阻 0.03Ω 贴片功率电感
公司基本资料信息
- 电感值：1μH
- 直流电阻：0.03Ω
- 额定电流：2.95A
- 通过的认证：BIS认证
- 自谐频率：90MHz
- 测试频率：1Mk
＜品名（附包装代号）一览＞
LQH44PN1R0NP0L 、 LQH44PN1R0NP0K
Size Code 4040 (1515) in mm (in inch), 1.8mm max. Thickness

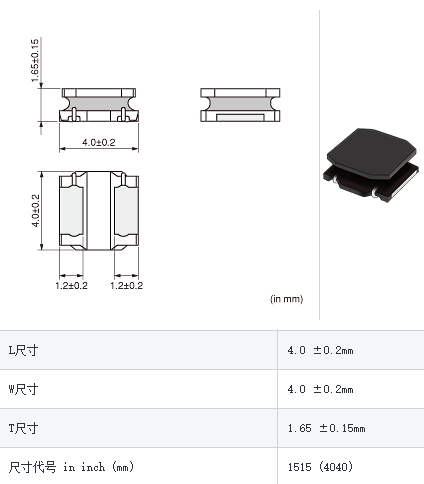

形状
|
|||
|---|---|---|---|
| L尺寸 | 4.0 ±0.2mm | ||
| W尺寸 | 4.0 ±0.2mm | ||
| T尺寸 | 1.65 ±0.15mm | ||
| 尺寸代号 in inch (mm) | 1515 (4040) | ||
规格
| 电感徝 | 1.0µH ±30% |
| 电感徝测试频率 | 1MHz |
| 额定电流(Isat) *根据电感徝変化 | 2950mA |
| 额定电流(Itemp) *根据温度上升 | 2450mA |
| 直流电阻(最大) | 0.0360Ω |
| 直流电阻中心值 | 0.030Ω±20% |
| 自己共振周波数 (以上) | 90MHz |
| 使用温度范围 (包含自身温度的提高) | -40～125℃ |
| 使用温度范围 (不包含自身温度的提高) | -40～85℃ |
| 电磁屏蔽等級 | Magnetic Resin |
备注事项
When applied Rated current to the Products, Inductance will be within ±30% of initial Inductance value.
When applied Rated current to the Products , self temperature rise shall be limited to 40℃ max.
Keep the temperature(ambient temperature plus self-generation of heat) under 125℃
参考信息
| 包装代号 | 规格 | 最小订购单位 |
|---|---|---|
| L | φ180mm压纹带 | 1000 |
| K | φ330mm压纹带 | 3500 |
| 质量(参考值) | |
|---|---|
| 1个 | 0.10g |
| 品名 #处为包装代号。 |
| LQH44PN100MGR# |
| LQH44PN100MJ0# |
| LQH44PN100MP0# |
| LQH44PN150MGR# |
| LQH44PN150MJ0# |
| LQH44PN1R0NJ0# |
| LQH44PN1R0NP0# |
| LQH44PN1R5MJ0# |
| LQH44PN220MGR# |
| LQH44PN220MJ0# |
| LQH44PN220MP0# |
| LQH44PN2R2MJ0# |
| LQH44PN2R2MP0# |
| LQH44PN2R2NGR# |
| LQH44PN330MGR# |
| LQH44PN330MJ0# |
| LQH44PN3R3MJ0# |
| LQH44PN3R3MP0# |
| LQH44PN3R3NGR# |
| LQH44PN470MGR# |
| LQH44PN470MJ0# |
| LQH44PN4R7MGR# |
| LQH44PN4R7MJ0# |
| LQH44PN4R7MP0# |
| LQH44PN6R8MGR# |
| LQH44PN6R8MJ0# |
| LQH44PN6R8MP0# |
| LQH44PNR68NGR# |
